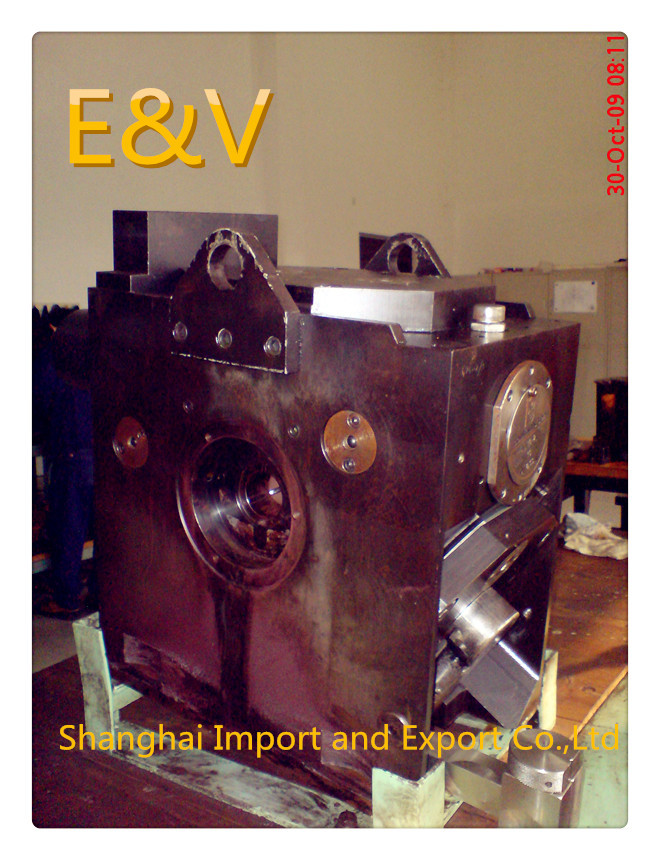

Positive Triangle Triple Roller Y Type Small Cold Rolling Machine With Separate Motor

No. item
Parameter

1 Model:Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.

2 Input dia:Φ55mm,Φ35mm,Φ25mm,Φ20mm,Φ17mm,Φ16mm,Φ14.4mm,Φ12.5mm,Φ8mm etc.

3 Output dia:Φ20mm,Φ18mm,Φ17mm,Φ8mm,Φ6mm,Φ5mm,Φ4mm,Φ3 mm etc.

4 Outlet rod out of roundness:No more than 0.2mm after rolling, or more accurate

5 Rolling pass:2-16 or as each customer’s requirements

6 Rolling speed :Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.

7 Pass schedule ellipse-round hole type system or triangular -round type system

8 total extend compression ratio : 2-10, or as each customer’s requirements

9 each pass compression ratio :1.15～1.4(hole type can change)

10 Total power:100kw～500kw

11 Running mode :Each frame separate transmission speed controlled by frequency or AC servo

12 Operation mode :PLC control, touch screen display,can improve to DCS control or networking

13 type:2 high horizontal- vertical or 3 high positive triangle-inverted triangle

14 nominal roller dia:Φ200mm(double-groove/multi-groove),Φ248mm(double-groove/multi-groove),Φ264mm,Φ300mm,Φ370mm,Φ400mm etc.

15 No. of frame:2-16 or more

16 Main motor:11kw-110kw AC frequency motor or AV servo motor for each

17 roller material:other imported material etc.

18 rolling mill size :A complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m

19 height of center :height from the ground 1230mm

jiaxing Jicheng Machinery Co., Ltd is established in 2000, and located in Jiaxing city of Zhejiang. Nearby Hangzhou, Suzhou, Ningbo and other cities, it is located in the center of shanghai-hangzhou and suzhou-hangzhou traffic trunk lines, whose traffic is extremely convenient. The company is a professional production of oxygen-free copper rod continuous casting machine , metal rolling machine, copper wire drawing machine and other equipment high-tech manufacture company. That own independent reach and development, production and sales team.Since its establishment, the company has been awarded many honorary titles, such as Jiaxing Technical Private Company, Zhejiang Small and Medium sized technical company and National High-tech enterprises.
Our product not only have good reputation and sales well at home, but also be exported to more than 40 countries and regions, such as Russia, Malaysia, India, Vietnam, North Korea, Egypt, Iran, Syria, Lebanon, Zambia, Uzbekistan and Turkmenistan.
Jiaxing Jicheng machinery Co., Ltd will continue to keep the service concept of quality priority, and the work concept of innovation and development. Keeping scientific management, professional employee team, rigorous attitude, plentiful on-site experience to provide you the better product and higher quality service.YOU AND JICHENG DESIGNING IMPROVING INNOVATING
