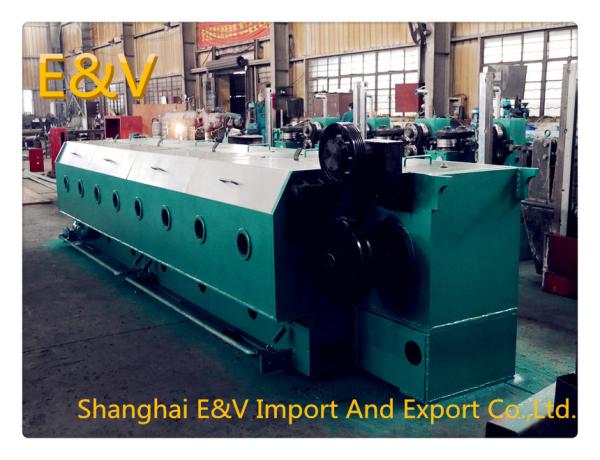

8M Tooth Type Belt Drive Metal Drawing Machine Button Control For 3-2.6 mm Aluminum Wire

1, inlet:1.6mm-2.5mm； outlet:0.3mm-1.0mm

2, main motor:15kw,with 15kw transducer； take up:4kw,with 4kw transducer

3, drawbench drive:8M tooth type belt(hold-in range),take up drive:flat belt

4, highest speed:1500m/minute

5, reduce face rate:15%+12%

6, the way of control:buttoned

7, the way of braking:electromagentic brake,the diameter of take up plate is 300(load 50kg)use 10kg braking,the diameter of take up plate(load 80kg)use 20kg braking

8, lubricating system:half soak+ spray type

9, cone pulley:four 9 tier with one tier constant speed,max dia:250mm,45# surface of forged steel deal with spurt porcelain.

10, main motor body:steel plate welding fabrication,anneal deal with distressing

11, contour dia:2700*1300*1900

12, Weight:2.2t

jiaxing Jicheng Machinery Co., Ltd is established in 2000, and located in Jiaxing city of Zhejiang. Nearby Hangzhou, Suzhou, Ningbo and other cities, it is located in the center of shanghai-hangzhou and suzhou-hangzhou traffic trunk lines, whose traffic is extremely convenient. The company is a professional production of oxygen-free copper rod continuous casting machine , metal rolling machine, copper wire drawing machine and other equipment high-tech manufacture company. That own independent reach and development, production and sales team.Since its establishment, the company has been awarded many honorary titles, such as Jiaxing Technical Private Company, Zhejiang Small and Medium sized technical company and National High-tech enterprises.
Our product not only have good reputation and sales well at home, but also be exported to more than 40 countries and regions, such as Russia, Malaysia, India, Vietnam, North Korea, Egypt, Iran, Syria, Lebanon, Zambia, Uzbekistan and Turkmenistan.
Jiaxing Jicheng machinery Co., Ltd will continue to keep the service concept of quality priority, and the work concept of innovation and development. Keeping scientific management, professional employee team, rigorous attitude, plentiful on-site experience to provide you the better product and higher quality service.YOU AND JICHENG DESIGNING IMPROVING INNOVATING
