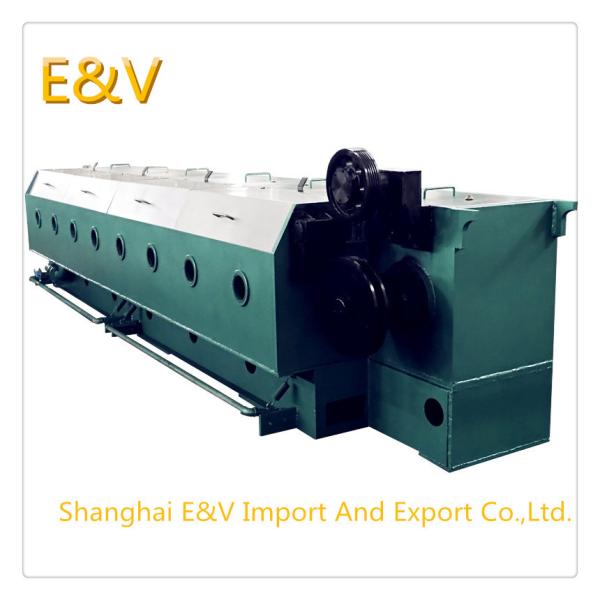

    DC motor 8mm - 2.6mm 9D Copper Wire Drawing Machine Frequency Control

    Ask Lasest Price
    Brand Name : E&V
    Model Number : 9D
    Supply Ability : 1set per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    DC motor 8mm - 2.6mm 9D Copper Wire Drawing Machine Frequency Control


    DC motor 8mm - 2.6mm 9D Copper Wire Drawing Machine Frequency Control


    1. Brief of introduction

    9D big drawing machine for copper wire is used for producing oxygen free or low round copper wire and the biggest input size is 8mm. Through nine processes to continuous drawing copper rod 8mm to copper wire 3mm-2.6mm, using automatic plate for paying off and automatic coiling.


    2. Main parameter

    NO.ItemParameter
    1modelDL400-9D big drawing machine for copper wire
    2inlet diaΦ8mm
    3outlet diaΦ3mm~Φ2.6mm
    4Drawing die numbers9
    5line speed (max)800MPM
    6structure of machineweld
    7Drawing speed2t/h
    8Area reduction rate of m/c23.6%
    9capstan reduction rate of m/c20%
    10capstanTungsten carbide
    11capstan dia (max)Φ400
    12Fix speed capstan dia (mm)Φ400
    13Total power160kw,DC motor
    14coiling power11kw /15kw three phase AC frequency motor
    15the way of controlling speedAC control +frequency control
    16transmission wayGrinding gear(20CrMnTi Sophisticated helical gear )
    17Pay off wayOverhead
    18Cooling wayFully immersed
    19service voltageThree phase 380V(AC),50Hz

    some questions for this machine, maybe u are interested in


    1. how many die in this drawing machine?


    9D


    2. annealing can be optional , annealing is a process for heating , then make the wire soft
