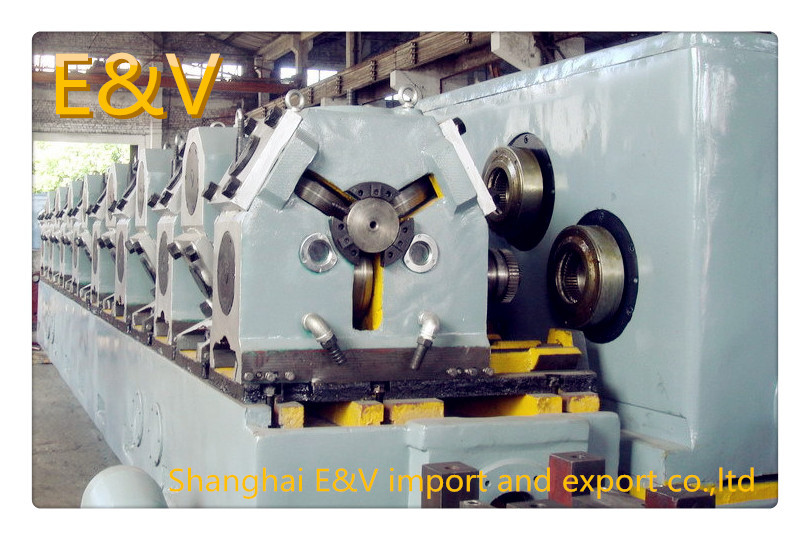

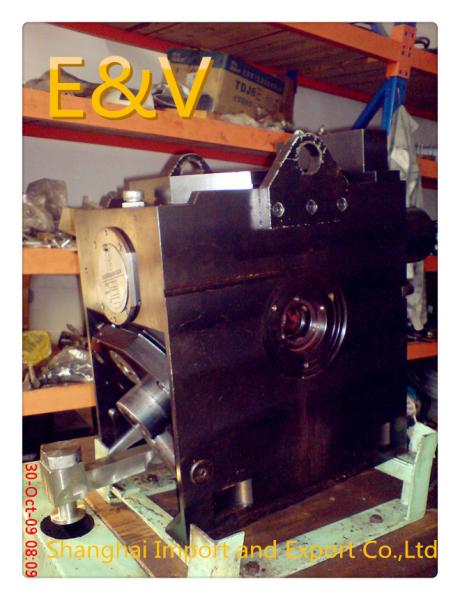

Aluminum Continuous Y Type Cold Three Roll Mill With 0.2mm Outlet
Rod Out
Feature
1. The unit is used for processing copper alloy rod for cold
rolling. Copper alloy rod is rolled by cold rolling mill to improve
mechanical property and remedy the limitation of casting. The
producing capacity is 2.5tom per hour, it can roll the rod from
17mm to 8/6mm.
2. Our machine with advanced design concept. Machine designed
adopts advanced technology and high quality material, West Germany
plate appearance design, high efficiency than similar products;
Stand mill is beautiful, efficient, durable power.
3. Electrical parts adopts famous brand. like, Mitisubishi Japan or
Siemens Germany . Use high-speed communication control mode, save
and reliable property, advanced technology, controlled by colors
touch screen during production,show all figure clear.(such as pass
setting, speed setting, length setting, roller in/out, real line
speed, real roller rotation speed, running frequency motor,
current, fault and content display,PLC-I/O display etc.) “Internet
-things system” (optional) can save date of machine
running(frequency motor current, frequency, line speed
etc.),technology parameter,production records, can real-time
display though LAN or internet, easy operation, high automatic.
No. | item | Parameter |
1 | Model: | Copper rod cold rolling mill, copper alloy cold rolling mill. Other
metal rod cold rolling mill, other alloy cold rolling mill,copper /
aluminum continuous casting and rolling etc. |
2 | Input dia | Φ55mm,Φ35mm,Φ25mm,Φ20mm,Φ17mm,Φ16mm,Φ14.4mm,Φ12.5mm,Φ8mm etc. |
3 | Output dia | Φ20mm,Φ18mm,Φ17mm,Φ8mm,Φ6mm,Φ5mm,Φ4mm,Φ3 mm etc. |
4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
5 | Rolling pass | 2-16 or as each customer’s requirements |
6 | Rolling speed | Max 3M/s for continuous rolling, Max 5M/s for discontinuous
rolling. |
7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
8 | total extend compression ratio | 2-10, or as each customer’s requirements |
9 | each pass compression ratio | 1.15～1.4(hole type can change) |
10 | Total power | 100kw～500kw |
11 | Running mode | Each frame separate transmission speed controlled by frequency or
AC servo |
12 | Operation mode | PLC control, touch screen display,can improve to DCS control or
networking |
13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted
triangle |
14 | nominal roller dia | Φ200mm(double-groove/multi-groove),Φ248mm(double-groove/multi-groove),Φ264mm,Φ300mm,Φ370mm,Φ400mm
etc. |
15 | No. of frame | 2-16 or more |
16 | Main motor | 11kw-110kw AC frequency motor or AV servo motor for each |
17 | roller material | other imported material etc. |
18 | rolling mill size | A complete production line: length 18m *width 6 m*height 2.5mMain machine : length 7.6m*width 2.3m *height 2m |
19 | height of center | height from the ground 1230mm |
