2-Roller Copper Rod Cold Rolling Mill with good quality and price
I. Breif Introduction
The unit is divided into 2-roller copper rolling mill and 3-roller
copper rolling mill, is used in continuous rolling of copper and
copper alloy rod. It's particularly suitable to be used in the rollig of the copper
rod made from upward continuous casting machine with copper scrap
as raw material,the process will improve the quality of the copper
rod and make them more suitable for next process:drawing
It has high efficiency, energy saving, refining, and strengthen the
copper rod crystal organization and etc.
II. Feature
Rollers of each rolling stand are driven by separate inverter
motor. When the shape of the pass and rotating speed of each pass
stand roller are changed at the same time, each stand can operate
asynchronously. Processing rollers can change the shape of the
pass, and the gear ratio of each stand roller can be set on the
touch screen. So on the premise of meeting the stand strength,
2-roller copper rod cold rolling mill can roll different dimensions
of copper rod and also roll other materials.
III.Main Data
| o. | item | Parameter |
| 1 | Model: | Copper rod cold rolling mill, copper alloy cold rolling mill. Other
metal rod cold rolling mill, other alloy cold rolling mill,copper /
aluminum continuous casting and rolling etc. |
| 2 | Input dia | Ф55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc. |
| 3 | Output dia | Ф20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc. |
| 4 | Outlet rod out of roundness | No more than 0.2mm after rolling, or more accurate |
| 5 | Rolling pass | 2-16 or as each customer’s requirements |
| 6 | Rolling speed | Max 3M/s for continuous rolling, Max 5M/s for discontinuous
rolling. |
| 7 | Pass schedule | ellipse-round hole type system or triangular -round type system |
| 8 | total extend compression ratio | 2-10, or as each customer’s requirements |
| 9 | each pass compression ratio | 1.15～1.4(hole type can change) |
| 10 | Total power | 100kw～500kw |
| 11 | Running mode | Each frame separate transmission speed controlled by frequency or
AC servo |
| 12 | Operation mode | PLC control, touch screen display,can improve to DCS control or
networking |
| 13 | type | 2 high horizontal- vertical or 3 high positive triangle-inverted
triangle |
| 14 | nominal roller dia | Ф200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm
etc. |
| 15 | No. of frame | 2-16 or more |
IV.Main component
1. Rolling mill base 2. 2-roller motive power frame(including

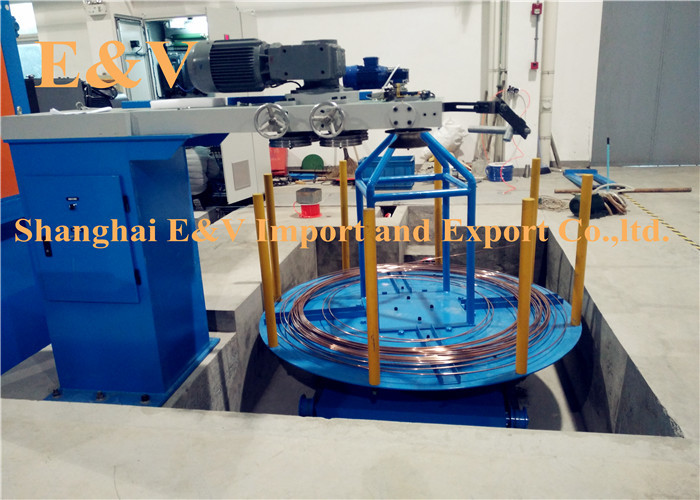

reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system
5. Lubrication system 6. Emulsion system 7. Electronic control
system 8.straightening device
V.Spare parts for 20mm-8mm forming units
No. Name
1 rollers
2 Roll shaft
3 guide
4 Expansion sleeve
VI.Why you should choose us
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of
credit,equality and mutual benefit.
Our company is engaged in manufacturing metal casting machines,wire drawing
machines,melting furnaces and extrusion machines. We are a large
scale group with new technology, update skill, latest device and
combining research, production and sales
