    Nickel copper alloy rod Metal Rolling Mill 17mm - 8mm Rolling Size

    Ask Lasest Price
    Brand Name : E&V
    Model Number : JC-RM248((Ф17-Ф8)-8P-1C
    Supply Ability : 1set per month
    Delivery Time : 120days
    • Product Details
    • Company Profile

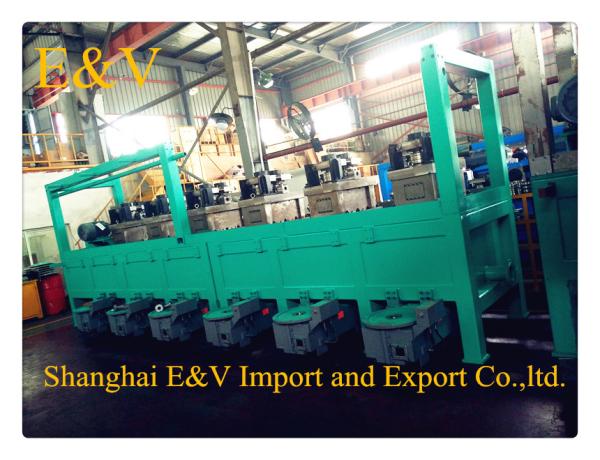

    Nickel copper alloy rod Metal Rolling Mill 17mm - 8mm Rolling Size

    17mm-8mm Nickel- copper alloy rod Continuous Rolling Mill
    I. Detail information
    The unit is used for copper rod cold rolling. Invented,designed and produced by our own company ,the rolling machine having many patents for invention at home and abroad ,used by many company on global,high quality

    II. Feature
    1. Rolling mill's drving motor belongs to separte motor each frame can be adjusted precisely,the pull-push phonomenon can be eliminated cased by uneven speed during rolling.
    2. Quickly change rollers to reduce equipment maintenance and repair time
    3. A set of machine can rollers to reduce equipment maintenance and repair time.
    4. All kinds of special materitals can be rolled
    5. oil supply and detected point by point,which makes lubrication system more reliable.
    6. Reduce rolling energy consumption and manual consumption.

    III.Main parameter

    No.itemParameter
    1Model:Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
    2Input diaФ55mm,Ф35mm,Ф25mm,Ф20mm,Ф17mm,Ф16mm,Ф14.4mm,Ф12.5mm,Ф8mm etc.
    3Output diaФ20mm,Ф18mm,Ф17mm,Ф8mm,Ф6mm,Ф5mm,Ф4mm,Ф3 mm etc.
    4Outlet rod out of roundnessNo more than 0.2mm after rolling, or more accurate
    5Rolling pass2-16 or as each customer’s requirements
    6Rolling speedMax 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
    7Pass scheduleellipse-round hole type system or triangular -round type system
    8total extend compression ratio2-10, or as each customer’s requirements
    9each pass compression ratio1.15~1.4(hole type can change)
    10Total power100kw~500kw
    11Running modeEach frame separate transmission speed controlled by frequency or AC servo
    12Operation modePLC control, touch screen display,can improve to DCS control or networking
    13type2 high horizontal- vertical or 3 high positive triangle-inverted triangle
    14nominal roller diaФ200mm(double-groove/multi-groove),Ф248mm(double-groove/multi-groove),Ф264mm,Ф300mm,Ф370mm,Ф400mm etc.
    15No. of frame2-16 or more
    16Main motor11kw-110kw AC frequency motor or AV servo motor for each
    17roller materialother imported material etc.
    18rolling mill size

    a complete production line: length 18m *width 6 m*height 2.5m
    Main machine : length 7.6m*width 2.3m *height 2m

    19height of centerheight from the ground 1230mm



    IV. Technical process
    Check the device→Touch screen enters to the normal working screen→Open the oil pump

    Open the emulsion pump

    The increase the speed and turn into ← Rolling the copper rod ← Start the rolling mill
    nomol production

    V. Installation
    1. The seller will send engineers to the buyer's site to direct the installation and test run. The buyer should prepare the installation site including, but not limited to, hoisting apparatus, labor power, tools and civil construction, etc. The buyer is responsible for the civil construction and arrange the accommodation for the seller's engineers.


    Nickel copper alloy rod Metal Rolling Mill 17mm - 8mm Rolling Size

    55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

    20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
