Unit composition:

A.Induction furnace

B.continuous casting machine

C.rack of directive wheels

D.tension device

E.two-stroke coiler

F.cooling system

G.electric system

H.feeding system

I.measure temperature system

A. Line frequency induction furnace

The line frequency induction furnace includes furnace body ,furnace frame and inductor.According to yearly capacity of client's needs,choosing 300type furance,500type furance,750type furance or copper channel furance.

B.continuous casting machine

The up-casting machine is the main part to realize the continuous upcasting which includes the traction system, the level tracking system and the crystallizer, the structure is gantry four pillar.The traction system includes two units of servo motor, reducer and traction rolling wheel.

C.output frame

The output frame is set up on the upper part of the casting machine. It includes the platform, the support, the vertical guide wheel and roller.It separates and feed the casted rods into each double head take up machine without influencing each other.

D. tension frame

The take up synchronizing device is a device which is set up between the output frame and the double head take up machine.There are ten units of displacement transducers and swing link.

E .double head take up machine

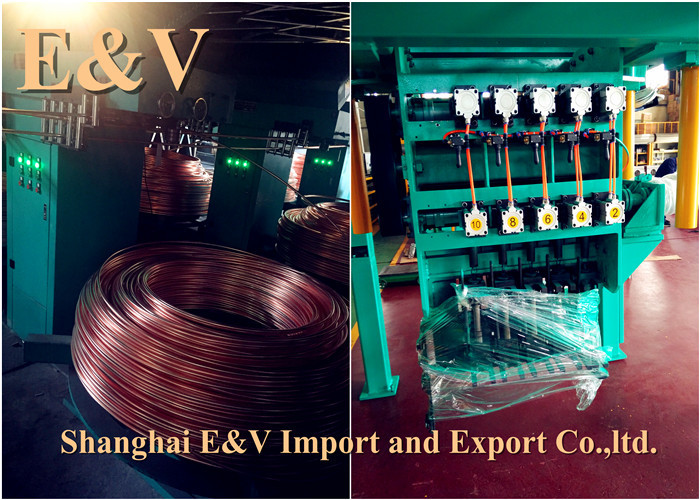

The double head take up machine includes the traction roller, the coiling device and the coiling plate.Each unit of the take up machine includes four or three motors controlling the two sides of take up device for two rods, the max coiling weight is 3.5ton.

F .water cooling system

The water cooling system is an independent water recycling system which supplies the cooling water for the crystallizer, the water jacket and the induction coil.

G .electric control system

The electric control system includes the power system and controlling system.The power system supplies the power to each inductor through several power panels.

H.feeding system

The feeding system feed the whole piece of copper cathode by the electric hoist.

I. temperature testing system

The temperature testing system includes two parts: copper liquid testing and water testing.The testing result is shown on both on the digital temperature meter and the industrial control scream for producing monitoring.
