    Large PLC control Copper Strip Casting Machine 0 - 150mm/min

    0-150mm/min Upward Oxygen-free Copper Strip Casting Machine


    Product Introduction


    The born and development of Upward continuous copper strip casting machine that break the

    traditional copper and copper alloy producing way shorten the copper processing time.The

    traditional process is divided three steps of melting and casting,heating process and cooling

    process.


    Advantages


    1)The highest grade of the heat-resistant andalusite furnace material.


    2) PLC controlling, and servo motor driven system.


    3) Manpower: 2 persons each shift.


    Main Technology Parameter Of Copper Strip Up-casting Machine


    No.ItemParameterRemark
    1ModelTPSYJ250*10*6-I3Adjustable as per customer’s requirements
    2Yearly capacity3000mt
    3Total power250KW
    4Furnace structurethree- body furnace(2melting furnace,1 holding furnace)Adjustable as per customer’s requirements
    5Casting strands6Adjustable as per customer’s requirements
    6Copper strip size250*10mmAdjustable as per customer’s requirements
    7Casting speed0-150mm/min
    8annual working time7920h
    9Liquid tracking precision±2mm
    10Take-up coil standard600kg/coil
    11Copper melting velocity380kg/hAdjustable as per customer’s requirements
    12Copper melting power consumption‹350kwh/ton
    13Take-up formCoiling
    14Feeding modewhole piece of electrolytic copper cathode fed by electric hoist
    15Driven mode3pc copper strip:1pc 4.4kwservo motor
    16Rod clamping methodManual clamping

    Large PLC control Copper Strip Casting Machine 0 - 150mm/min

    Our Services

    Supervision of Installation and Commissioning of the Equipments we supplied.


    Packaging & Shipping

    Standard export packing suitable for long distance sea transportation

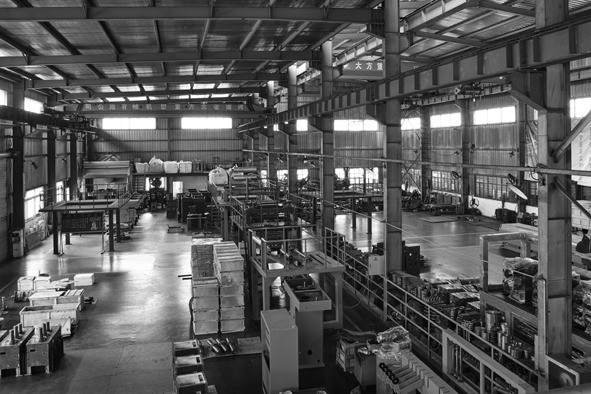

    Our factory
