8000MTФ8mm→Ф14.4mm |
8000MTФ17mm→Ф30mm |
10000MTФ8mm→Ф14.4mm |
| Main para-meter | 1 | Model :SYJ1208-I3 | Model :SYJ1217-I3 | Model :SYJ2008-I3 |
| 2 | Yearly capacity:6000mt | Yearly capacity:6000mt | Yearly capacity:10000mt |
| 3 | Furnace structure:500type three- body furnace(2melting furnace,1
holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1
holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1
holding furnace) |
| 4 | Casting strands :12 | Casting strands :12 | Casting strands :20 |
| 5 | Casting diameter: Ф8mm→Ф14.4mm | Casting diameter: Ф17mm→Ф30mm | Casting diameter: Ф8mm→Ф14.4mm |
| 6 | Casting speed:0～3000mm/min | Casting speed :0～1000mm/min | Casting speed:0～3000mm/min |
| 7 | annual working time:7920h | annual working time:7920h | annual working time:7920h |
| 8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm |

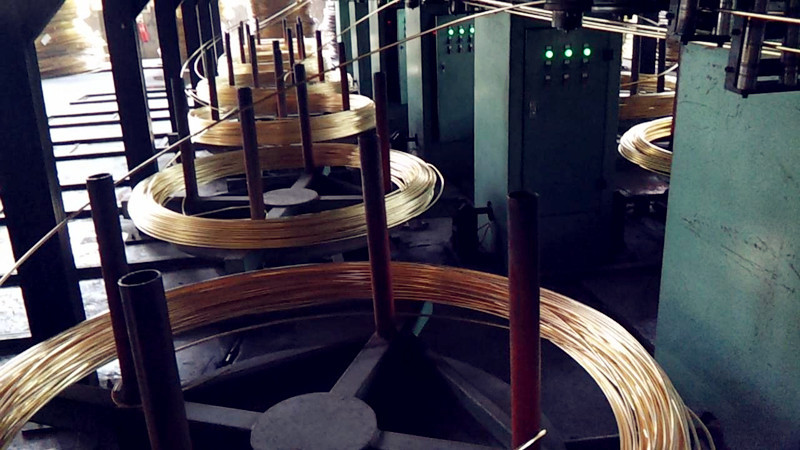

| 9 | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm |
| 10 | Copper melting velocity:1020kg/h | Copper melting velocity:1020kg/h | Copper melting velocity:1270kg/h |
| 11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton |
| 12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust |
| 13 | Take-up plate driven approach: PLC control, frequency
adjust,automatic coiling | Take-up plate driven approach: pushed by rod, manual adjusting | Take-up plate driven approach: PLC control, frequency
adjust,automatic coiling |
| 14 | Material feeding method:whole piece of electrolytic copper cathode
fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode
fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode
fed by electric hoist |
| 15 | Upward driven approach:driven by the AC servo motor, transmission
chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission
chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission
chain is driven by the gapless synchronous cog blet |
| 16 | Rod clamping method: air clamping | Rod clamping method: manual clamping | Rod clamping method: air clamping |
| 17 | Operation interface:date display,servo motor controlled by touch
screen | Operation interface:date display,servo motor controlled by touch
screen | Operation interface:date display,servo motor controlled by touch
screen |
| 18 | Total power:400KW AC three-phase 380V | Total power:400KW AC three-phase 380V | Total power:500KW AC three-phase 380V |
| | | |
| Price | | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of
electrical panel to Siemens,2.stepless automatic temper controlling
) AAA price: price negotiable (updates price A: 1.change the brand of
electrical panel to Siemens,2.stepless automatic temper
controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of
electrical panel to Siemens,2.stepless automatic temper controlling
) AAA price: price negotiable (updates price A: 1.change the brand of
electrical panel to Siemens,2.stepless automatic temper
controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of
electrical panel to Siemens,2.stepless automatic temper controlling
) AAA price: price negotiable (updates price A: 1.change the brand of
electrical panel to Siemens,2.stepless automatic temper
controlling, 3.full-automatic feeding devise) |
